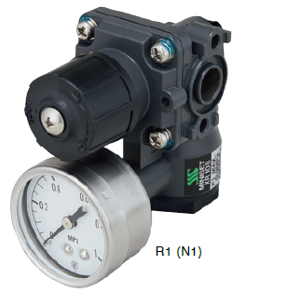

Air Filter Regulator XR series
Regulator XR:
- Compact and lightweight
- No Bracket Required
- 2 air supply inlets and 3 air outlets available
- Built-in Drain Plug
- Polypropylene cloth-free filter
- Panel mounting hole provided
Specifications:
|
XR 100 |
||
|
Ambient temperature |
Standard: -20 to 83°c Option: 0 to 100°C |
|
|
Pressure range |
0.2Mpa, 0.4Mpa, 0.8 Mpa |
|
|
Output pressure gauge |
0.2Mpa,0.4Mpa, l.OMpa Option:l/4NPT(Gauge 1/8 NPT) |
|
|
Air connection (pressure gauge) |
Standard: Rcl/4(Gauge Rcl/8), Option: 1/4 NPT(Gauge 1/8 NPT) |
|
|
Filter element |
Material |
Polypropylene cloth-free filter 5u |
|
Air resistance (Approx.) |
1.5kPa at 100Nl/min, 4.5kPa at 300Nl/min, 9.0kPa at 600Nl/min |
|
|
Aire Consumption: Pressure setting (MAX) |
0.5Nl/min : 0.14Mpa, 0.6Nl/min: 0.24Mpa, 0.7Nl/min: 0.40Mpa |
|
|
Max. air supply pressure |
0.9Mpa |
|
|
Weight |
Approx.260g |
|
