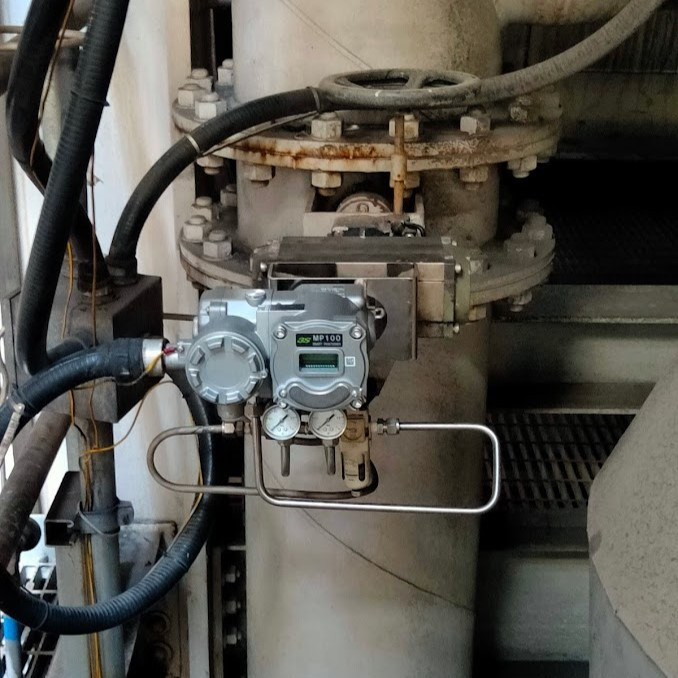

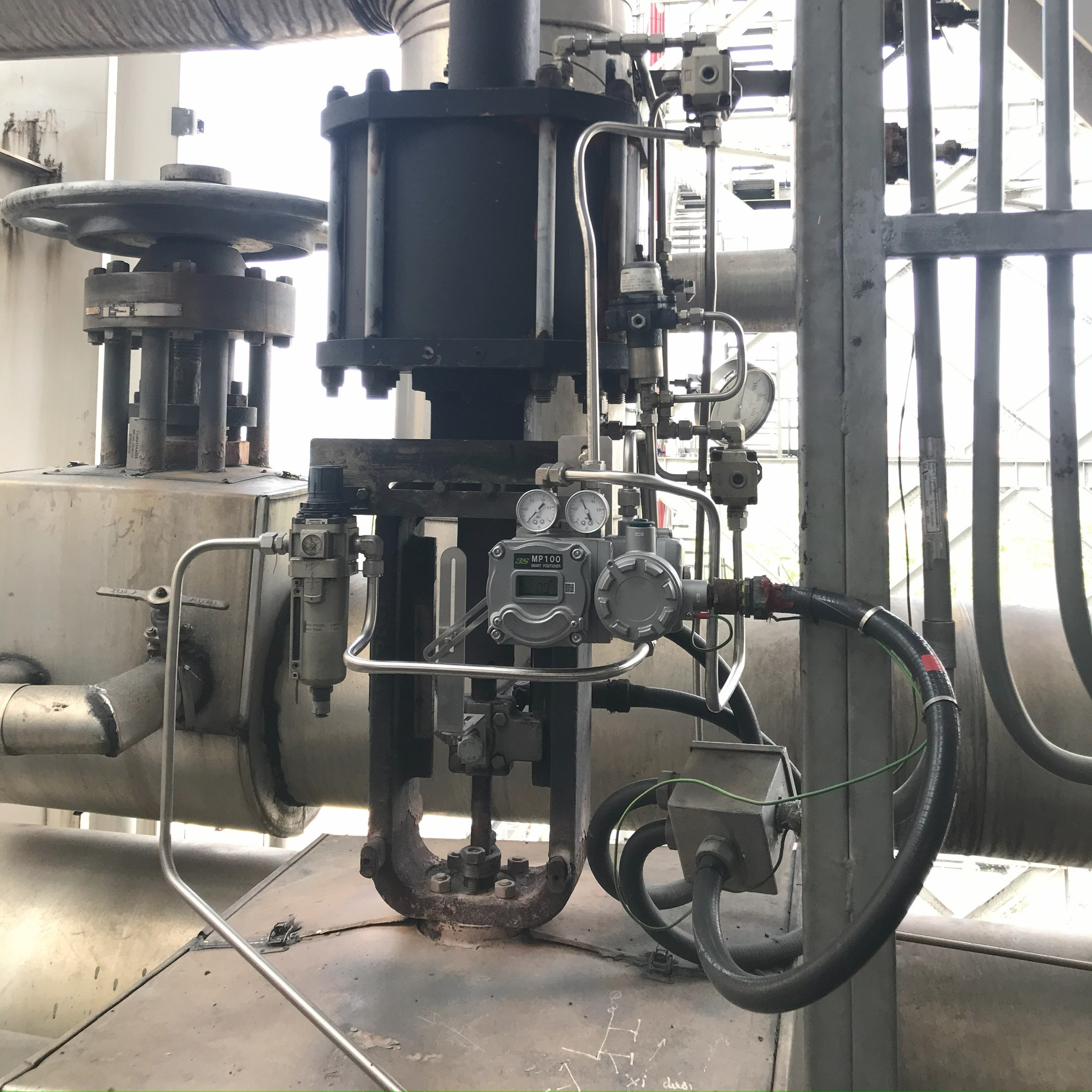

Smart Positioner MP100


Feature:

  • Easy operation, easy adjustment
  • LCD display equipped
  • Excellent design
  • Flexible configuration
  • Feedback signal function available (option)
  • HART communication available (option)

Specifications:

Item Specification
Input signal / Input resistance 4 to 20 mA (minimum range: 4 mA) / equivalent to 525 Ω at 20 mA(Voltage across terminals 10.5 V DC Typ)
Supply air pressure 0.14 to 0.50 MPa
Stroke / open angle Linear motion: 10 to 100 mm Rotation angle of feedback lever 45°(40 to 100°)
Rotary motion: Rotation angle of feedback lever 90° (40 to 100°)
Air connection Standard: Rc 1/4 (Pressure gauge Rc 1/8)
Option: 1/4 NPT (Pressure gauge 1/8 NPT)
Power connection Standard: G 1/2 Option1: 1/2 NPT Option2: M20×1.5
Protection of enclosure IP66
Type of Protection “Standard: Non-explosion proof
IECEx: Ex d llC T6 Gb
TIIS: Ex d llC T6
Other certifications have been applied for.
Operating temperature range “Standard model: -20 ~ 80℃
Explosion-proof model: -20 ~ 60℃
Flow characteristics Linear, near equal-percentage, quick open, user setting(17 setting points)
Manual action A/M swtch function (Single Acting only)
Weight Approx. 3.8 kg
Material Aluminum Diecasting (Specially anodized)
